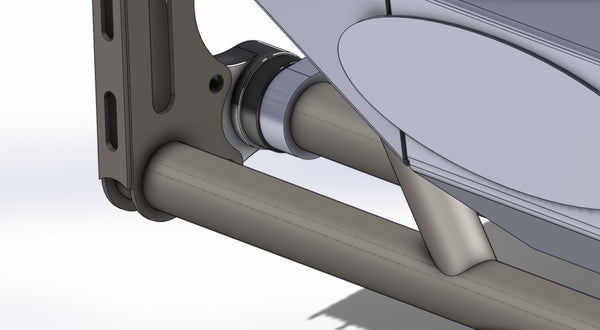

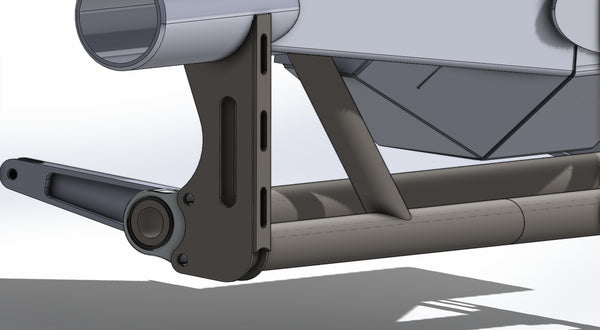

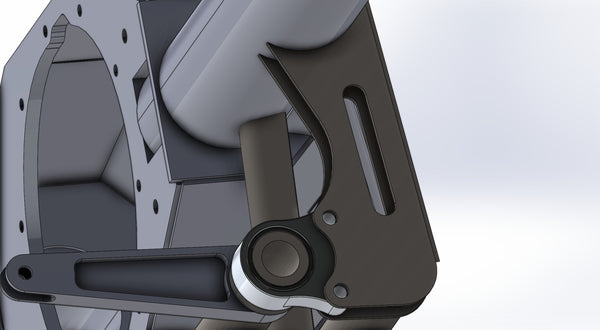

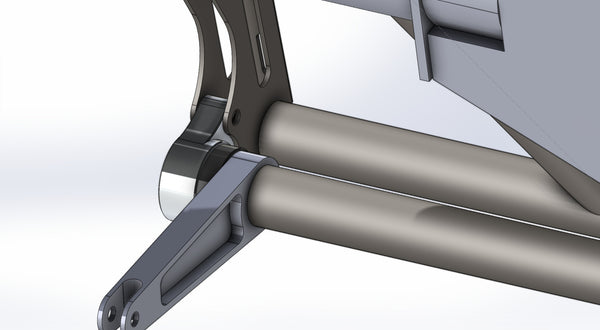

The title says it all! Cut from 3/16" PNO steel, these mounting brackets can send the ARB forward facing or rearward facing for whatever space you have. The lower support tube comes 36" long and is made of 1.5" x .095" DOM mild steel with 1.25" support gussets. The tube gussets will be notched to match the housing size you select. The outer mounting plate has no holes in it to cap the tube in, and the inside bracket the tube passes through. This allows for a very clean finish product. I get lots of questions about housing sizes- here's some basic info on that: Almost all Quick housings are 3.0", unless you buy a specific pro-fab 3.5", it's 95% of the time 3.0". Mustang 8.8's are 2.875", in this case use the 3.0" bracket, explorer 8.8" are 3.25", some old factory big weld 9" Fords are 3.25, but they aren't totally round either, ands last but not least, fabricated race car housings like mine are 3.5". When in doubt, I still recommend measuring the housing. Its always a good idea.
-Housing size 3.0",3.25",3.5"
-ARB style- billet steel arms mount with the arms inside the bushings, and aluminum arms mount with the arms outside the bushings. Technically you can weld the steel arms to the outside, but it's a task to replace a bushing if needed.
